Easee EV Vehicle Charger

The Easee One 10523 is a secure and powerful 7kW electric vehicle charger. The Easee One has been developed specifically for the UK domestic market. It's lightning-intelligent, gives you more power, smarter control and a high level of security.

Easee One is intelligent and adapts to all electric vehicles, power supplies and mains. With our home charging solution there is no need to think about technical specifications – the Easee One will automatically detect what power the vehicle requires.

Built to comply with UK regulations, the Easee One comes with both integrated type B RCD protection and open PEN conductor protection.

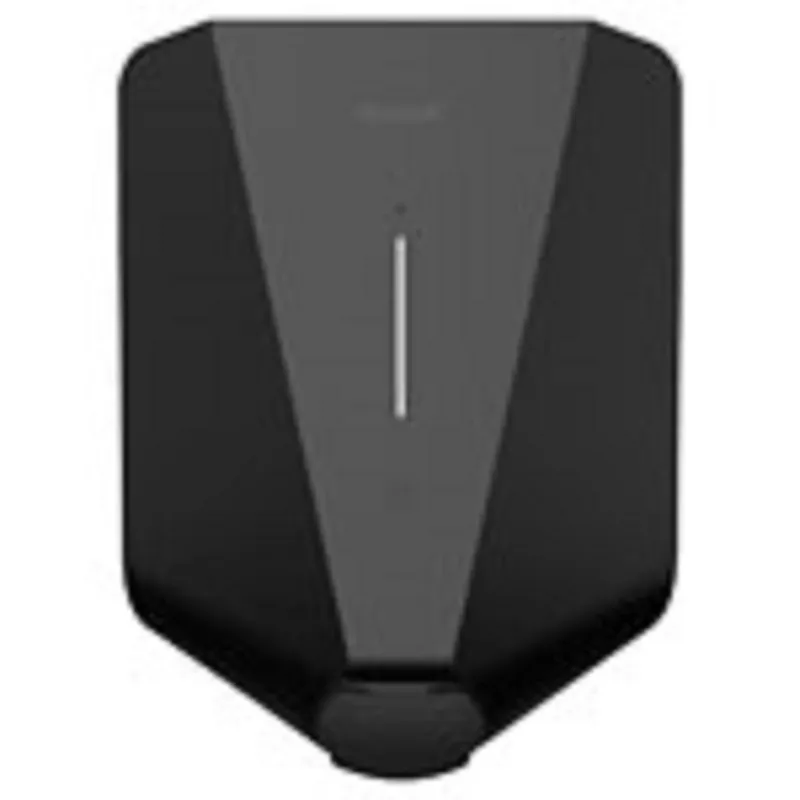

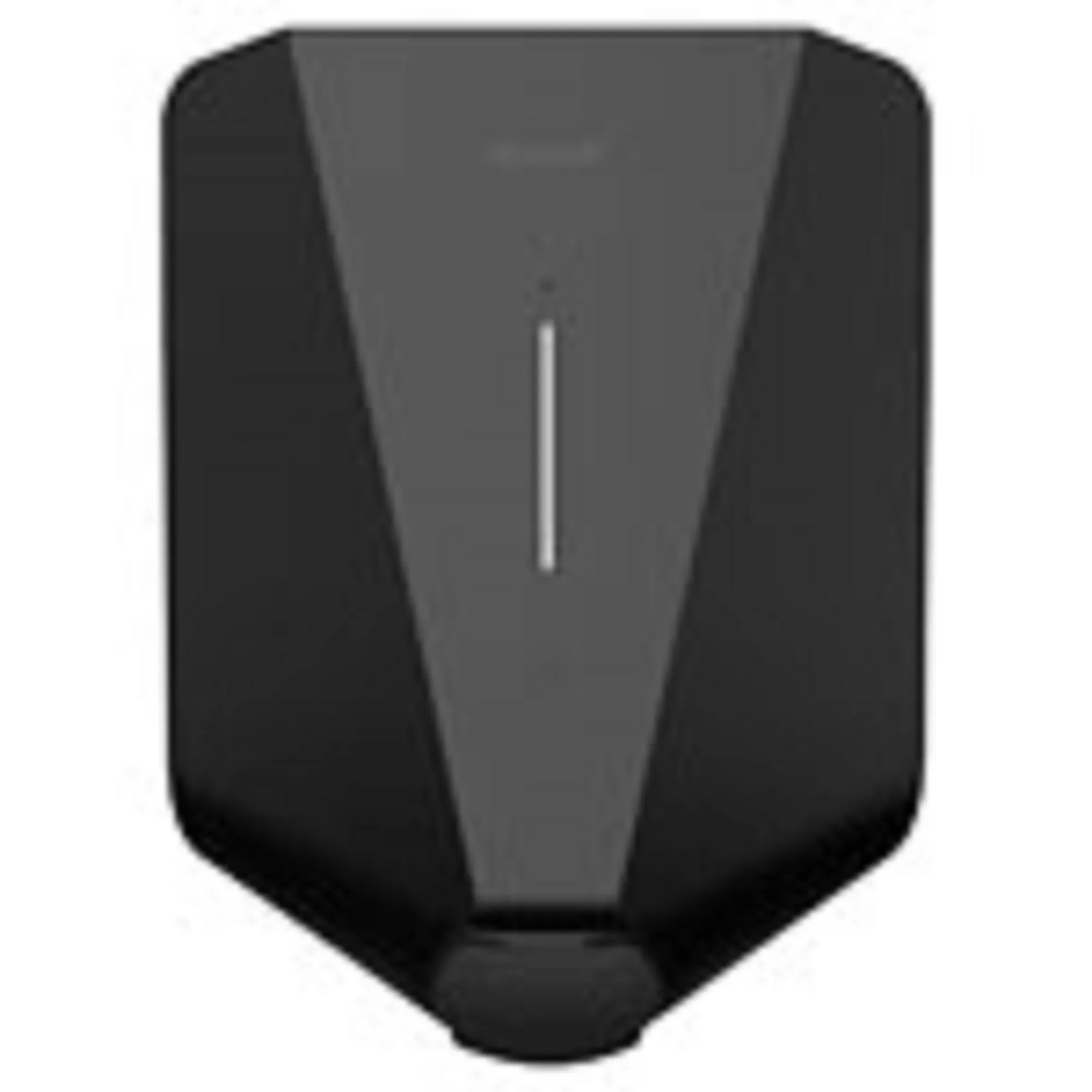

Product Description: Easee One 10523 1PH up to 7.4kW Black
Replenishh Order Code: 65-4480
Supplier Code: 10523
Product Type AC Electric Vehicle Charging Station
Dimensions (H x W x D) 256 x 193 x 106mm
Weight 1.5kg
Colour Black
Connector Type Type 2 Socket
Charging Cable length Not applicable
Warranty 36 Months
Mounting Options Wall or Post Mounted (Post mounting requires optional accessories)
Nominal Rated Voltage 230VAC
Maximum Current (Amps) 32A Single Phase
Rated Frequency 50Hz
Charging Power 7.4kW
Earth-Neutral (PEN) Fault Detection Yes
DC Leakage Detection 6mA
DC Leakage Protection Included Yes
RCCB/RCBO Included Yes, Type B RCCB
Maximum Input Cable Size 3 core 16mm² (single cable)
Degree of Protection (IP) IP54
Impact Strength (IK) IK08
Operating Temperature - 30ºC to 50ºC
Connectivity WiFi, 4G/GPRS, Bluetooth, RFID, NFC
Charger Status Information Device LED, Easee App
OZEV Approved Yes
Dynamic Load Management Single Phase Equaliser for Dynamic Load Management Available in Q1 2023
OCPP Version OCPP 1.6J



Please note: Charge Points must be installed by an 18th Edition qualified Electrician and trained by the relevant manufacturer. The products warranty will be potentially void if not installed to this standard

With the Easee 10223 Charge it has never been easier to charge in commercial buildings and workplaces. With dynamic load balancing, Easee utilises all available electrical capacity in commercial buildings.

The Charging Robot distributes the available current automatically between units – so both employees and visitors can charge in a smart and safe way.

This intelligent charger can charge on both single phase and three phase and supports charging up to 22kW. The Easee charge features a standard type 2 connector.

The ultimate solution for delivering EV-Charging at scale for workplace, apartment blocks, car parks and fleet.



Product Description: Easee Charge 10223 1PH and 3PH up to 22kW Black
Replenishh Order Code: 65-4481
Supplier Code: 10223
Product Type AC Electric Vehicle Charging Station
Dimensions (H x W x D) 256 x 193 x 106mm
Weight 1.5kg
Colour Black
Connector Type Type 2 Socket
Charging Cable length Not applicable
Warranty 36 Months
Mounting Options Wall or Post Mounted (Post mounting requires optional accessories)
Incoming Mains Supply Single Phase and Three Phase
Nominal Rated Voltage 230V / 400V AC
Maximum Current (Amps) 32A
Rated Frequency 50Hz ~ 60Hz
Charging Power 1.4kW > 22kW
Earth-Neutral (PEN) Fault Detection No
DC Leakage Detection 6mA
DC Leakage Protection Included Yes
RCCB/RCBO Included Yes, Type B RCCB
Maximum Input Cable Size 5 core 10mm²
Degree of Protection (IP) IP54
Impact Strength (IK) IK10
Operating Temperature - 30ºC to 50ºC
Connectivity WiFi, 4G/GPRS, Bluetooth, RFID, NFC
Charger Status Information Device LED, Easee App
OZEV Approved Yes
Dynamic Load Management Optional: Equaliser 100A (65-4296), Equaliser 500A (65-4297)
OCPP Version OCPP 1.6J



Please note: Charge Points must be installed by an 18th Edition qualified Electrician and trained by the relevant manufacturer. The products warranty will be potentially void if not installed to this standard.
