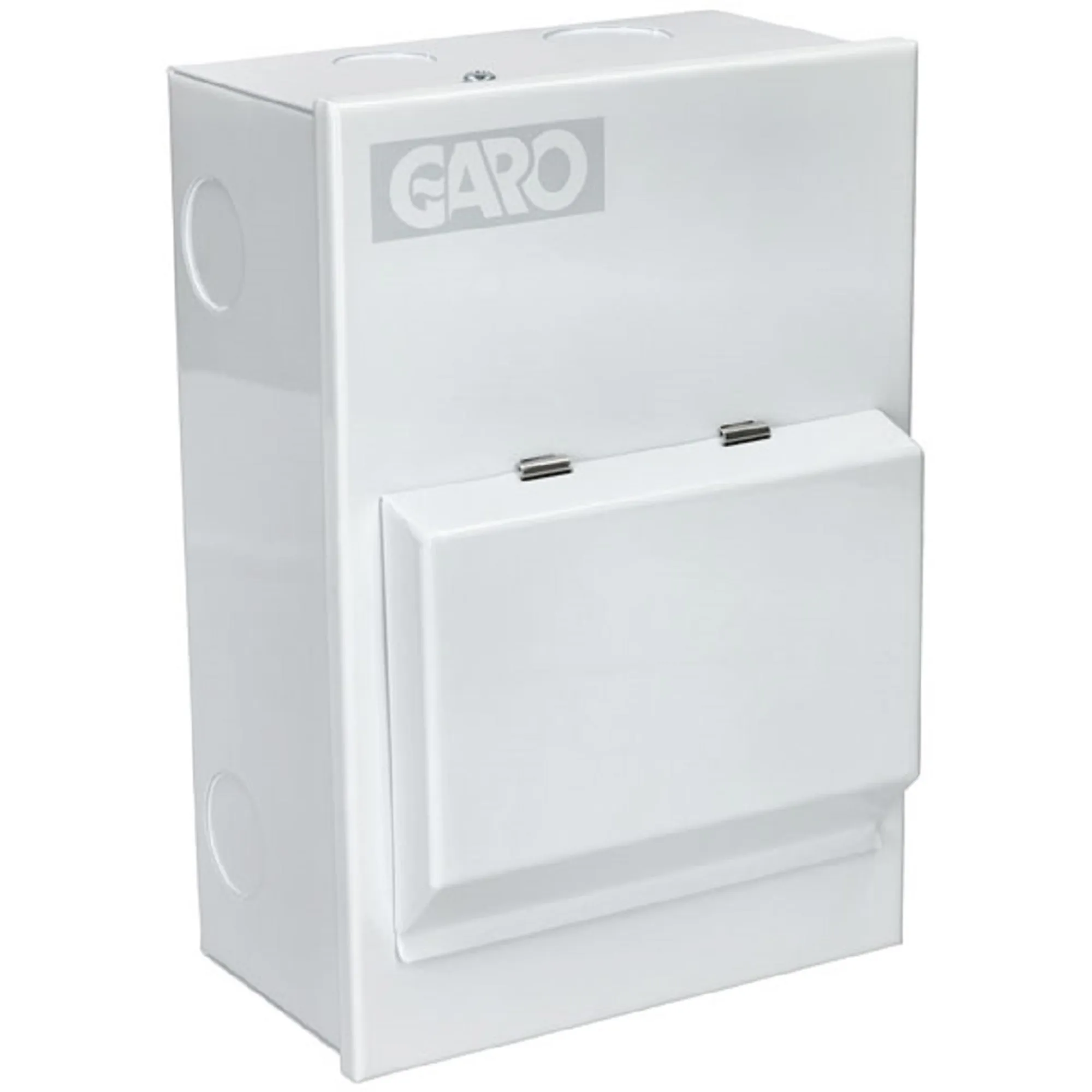

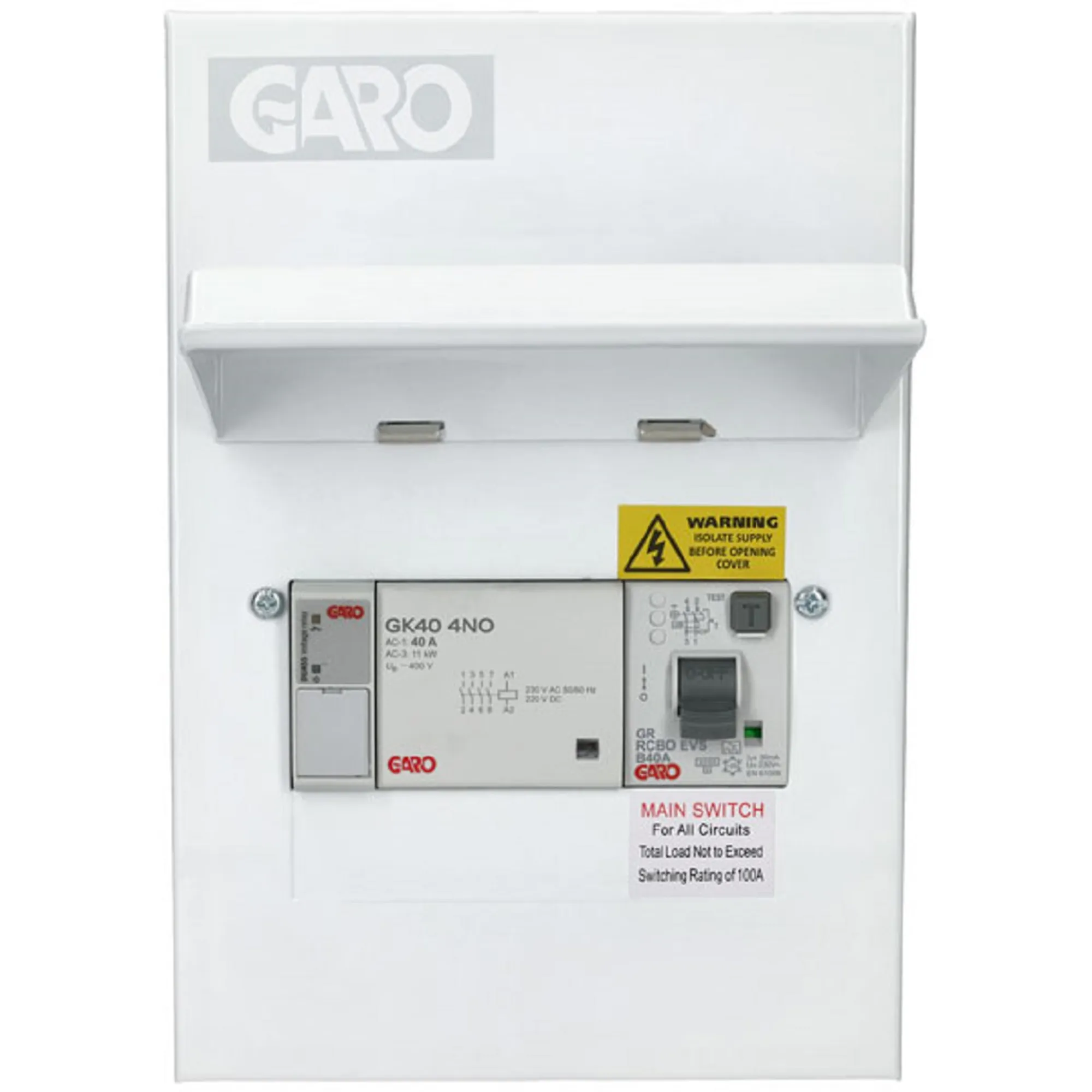

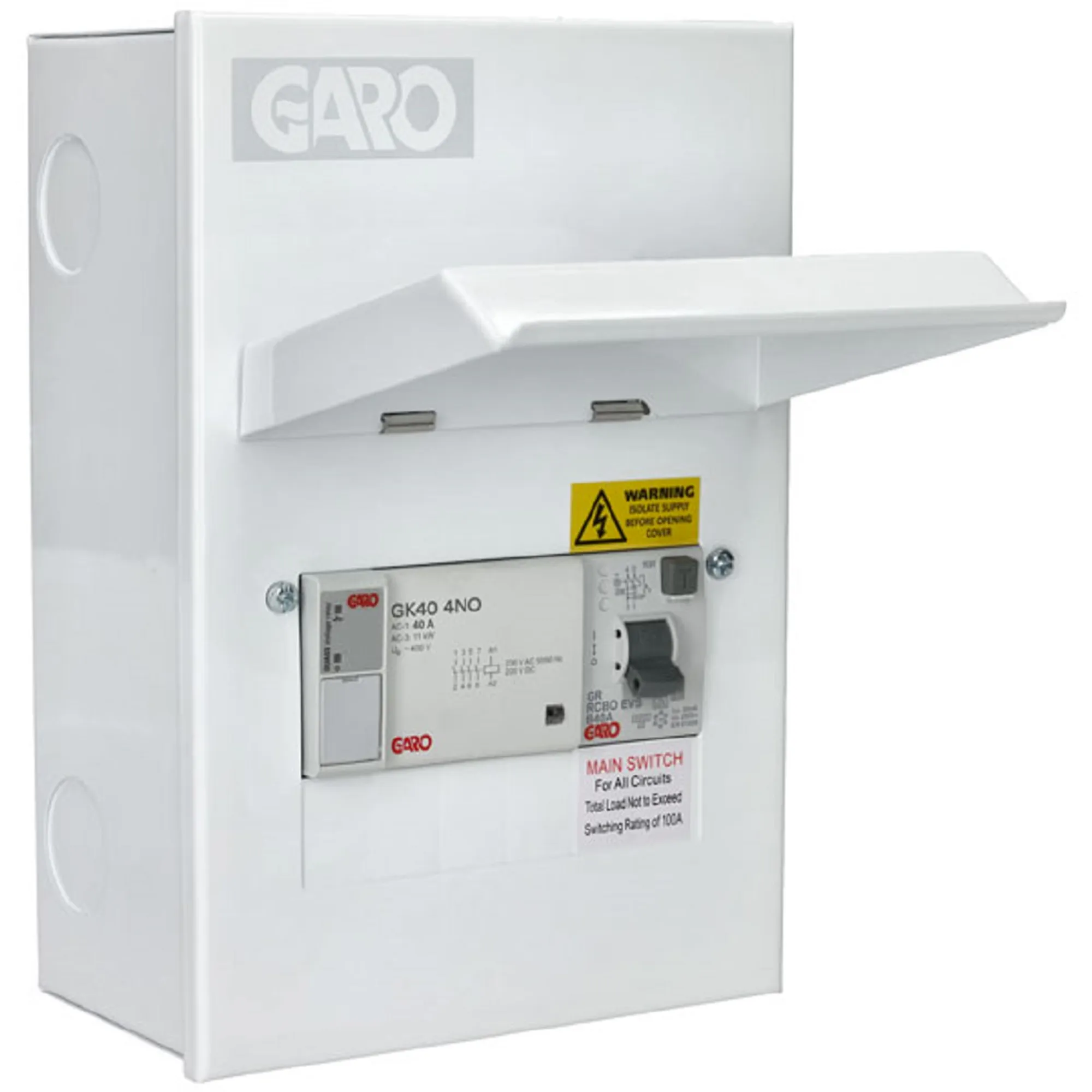

GARO G6EV40PME PME CONSUMER UNIT TYPE A RCBO FOR EV CHARGERS

The Garo G6EV40PME 40A EV Consumer unit with Type A RCBO and PME Fault Detection offers protection against electric shock in a single phase installation which is provided by a device that electrically disconnects the vehicle from the live conductors of the supply and from protective earth in accordance with Regulation 543.3.101.

This product includes an upgraded RCBO that is suitable for EVs with 100kW / 110kW batteries.

Warranty (Mechanical Components) 5 Years
Warranty (Electronic Components) 2 Years







Rated Current 40A
Rated voltage 230 V AC
Frequency 50/60 Hz
Rated Conditional Short Circuit (Icc) Annex ZB: 16kA rms at 250V

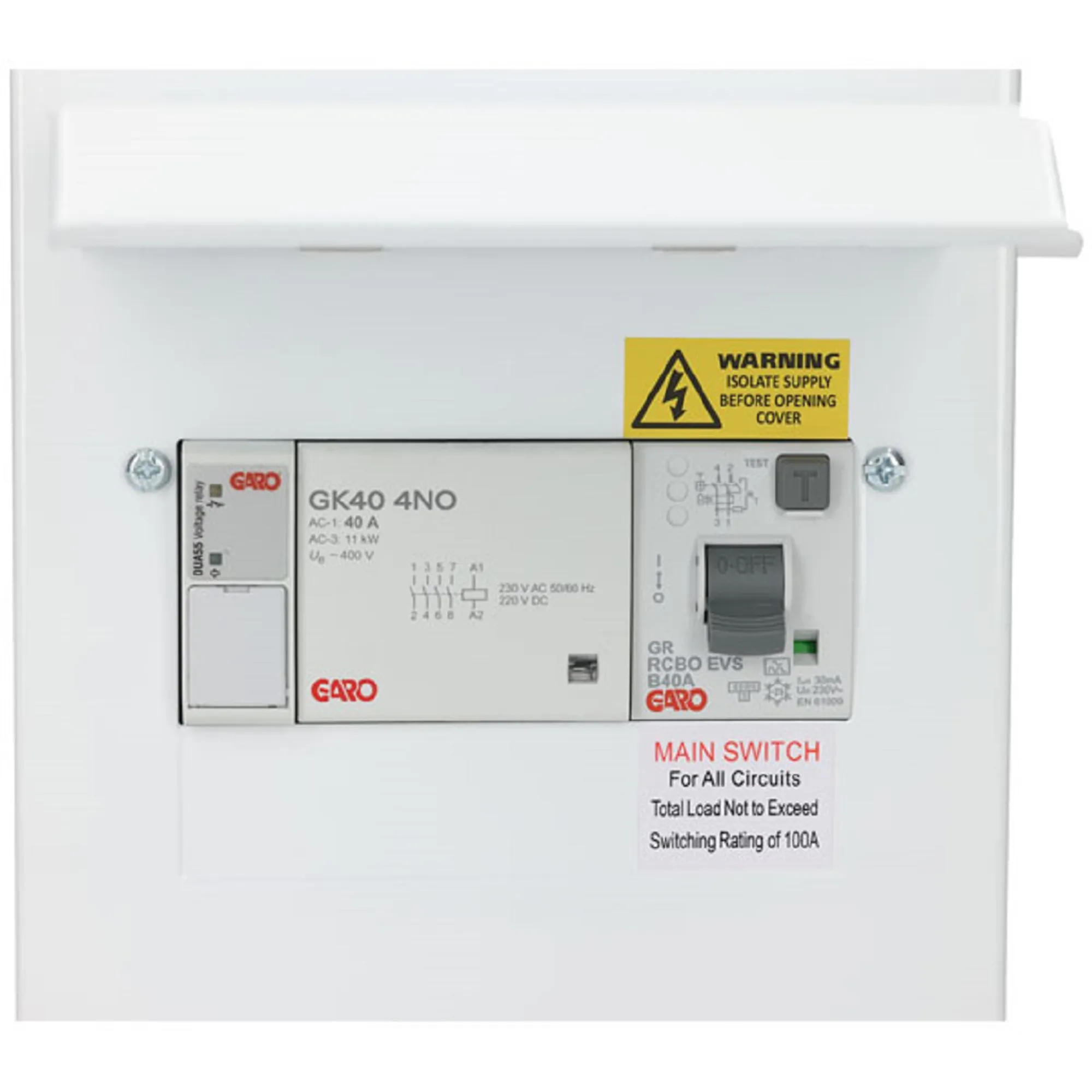

Main Device 40A RCBO Type A
Additional Devices PME Fault detection
Operation 207V - 253V (4 seconds)
Degree of protection IP40
Total number of ways 6
Height..mm (H) 235
Width..mm (W) 161
Depth..mm (D) 110
Ambient temperature (C) -25>+55
Storage temperature (C) -35>+55
Terminals 25mm
Material Metal
Standard EN 61439-3
Compliance BS 7671
