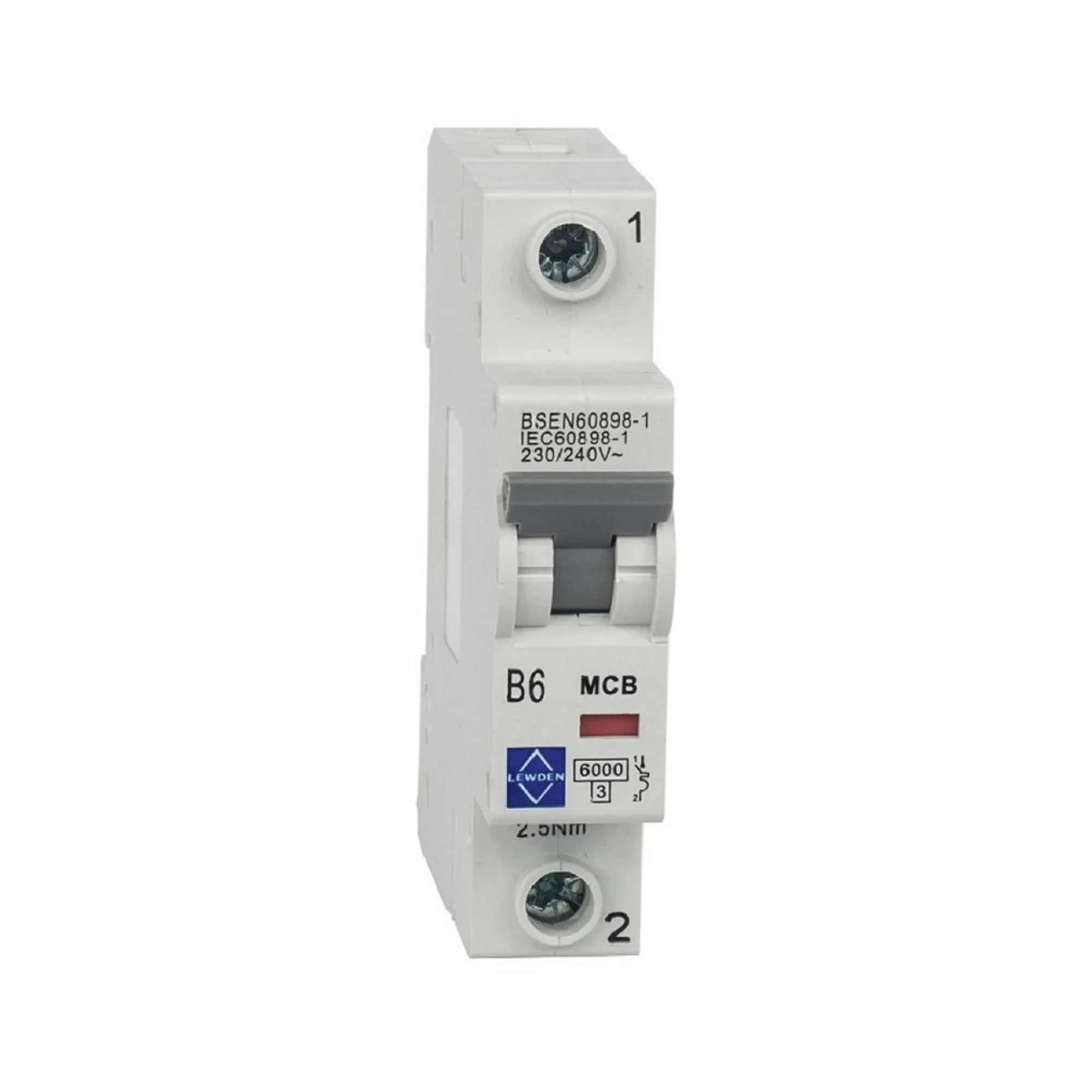

Lewden Miniature Circuit Breaker 6kA (G06) Single Pole

The Lewden G06 Range of MCBs are a 1 module 6kA single pole miniature circuit breaker MCB with type B or C tripping characteristics suitable for DIN-rail installation in the Pro range of residential consumer units.

It protects against overload, short circuit and infrequent switching of circuits under normal conditions. It detects an overcurrent caused by an overload or fault current, rapidly activating and interrupting the faulty power supply, protecting the installation from damage and reducing the risk of electric shocks and fire.

Has a positive indication for ON or OFF and conforms to BS EN 60898.

Rating 6- 50A 6kA
Tripping Characteristics: B Curve
Voltage: 230V 50/60 Hz
1 Module
Din Rail mounted
Maximum cable capacity 25mm²
Suitable for use with Lewden Pro range of residential consumer units
Standards: BS EN 60898
