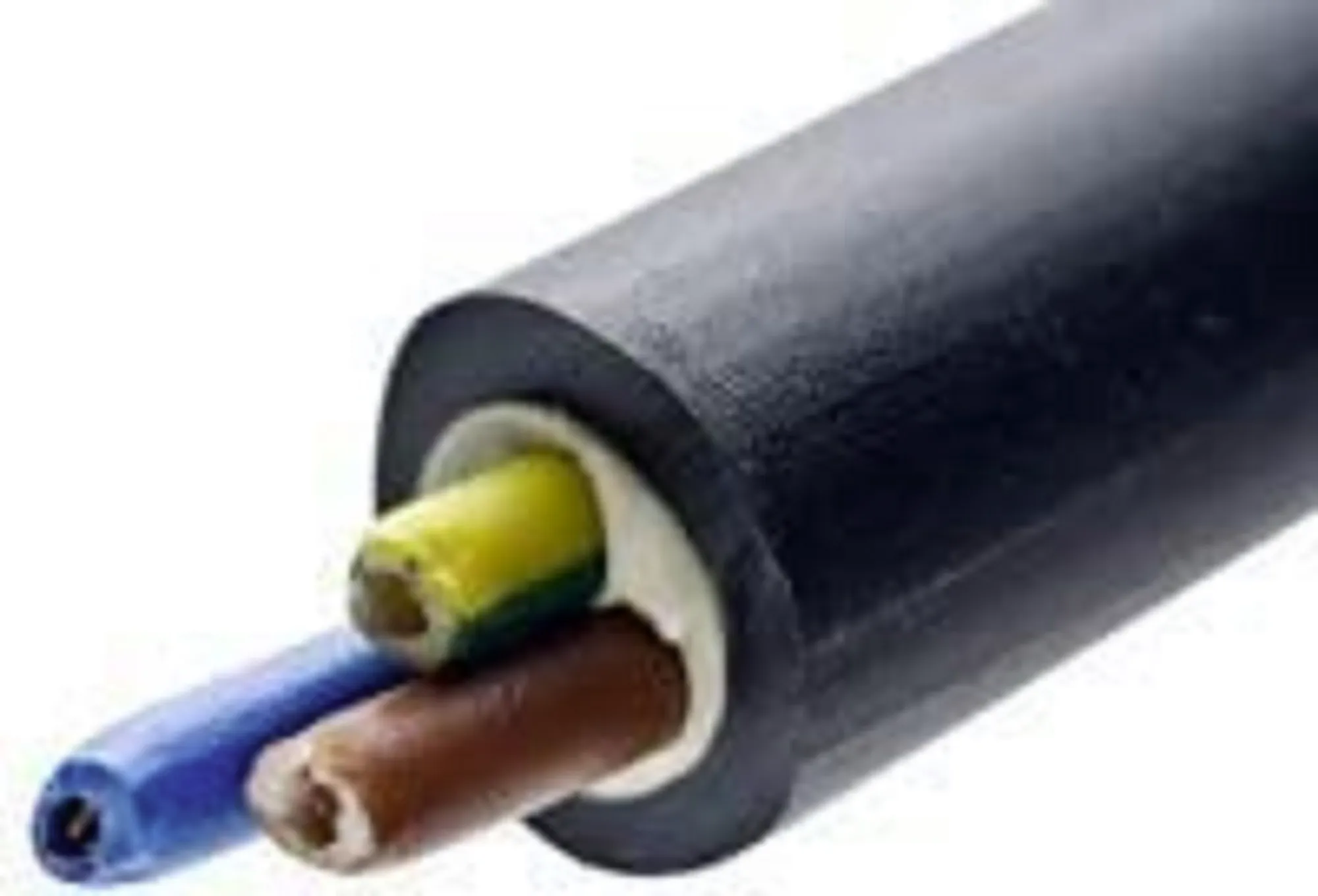

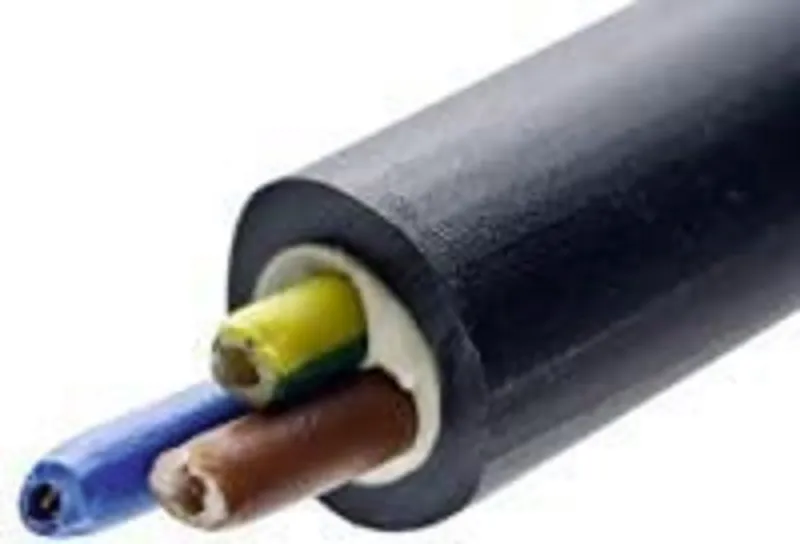

NYY-J Double Insulated Power Cable

Unarmoured power and control cable is most suited for energy supply in fixed installations. NYY Cable can be installed indoors where there is little chance of mechanical damage. Cables can be fixed on cable trays, within conduits or fixed to walls. This cable is not suitable for direct burial.

Cores

Size

Price

From £1.49incl VAT

NYY-J Cable Black available cut to length or in drum

Indoor use where mechanical damages are not to be expected.

Outdoors, Underground, in Brickwork,
To comply with the UK wiring regulations BS7671 for burial in the ground this will require installation in a conduit or duct to provide protection against mechanical damage and is not suitable for installation in concrete which is shaken, vibrated or compressed.

The UV-resistance allows for outdoor use.

NYY-J is a VDE approved, solid conductor*, black PVC jacketed, 600/1000 volt power and control cable.

Conductor: Class 1 solid plain copper to
BS EN 60228:2005 (previously BS6360), VDE0295, IEC 60228, CENELEC HD383

  • Insulation
    PVC (Polyvinyl Chloride) Type YI4 to VDE0276
  • Sheath
    FR/PVC (Flame Retardant / Polyvinyl Chloride) Type YM3 to VDE0276
  • Sheath Colour
    Black
  • Voltage Rating
    600/1000V
  • Temperature Rating
    Fixed: -40°C to +70°C
    Flexing: -5°C to +50°C
  • Minimum Bending Radius
    Single Core: 15 x overall diameter
    Multi-Core: 12 x overall diameter
  • Available up to and including 5 cores (colour coded)
