PROJECT EV EVA UNTETHERED DUAL SOCKET EV CHARGER

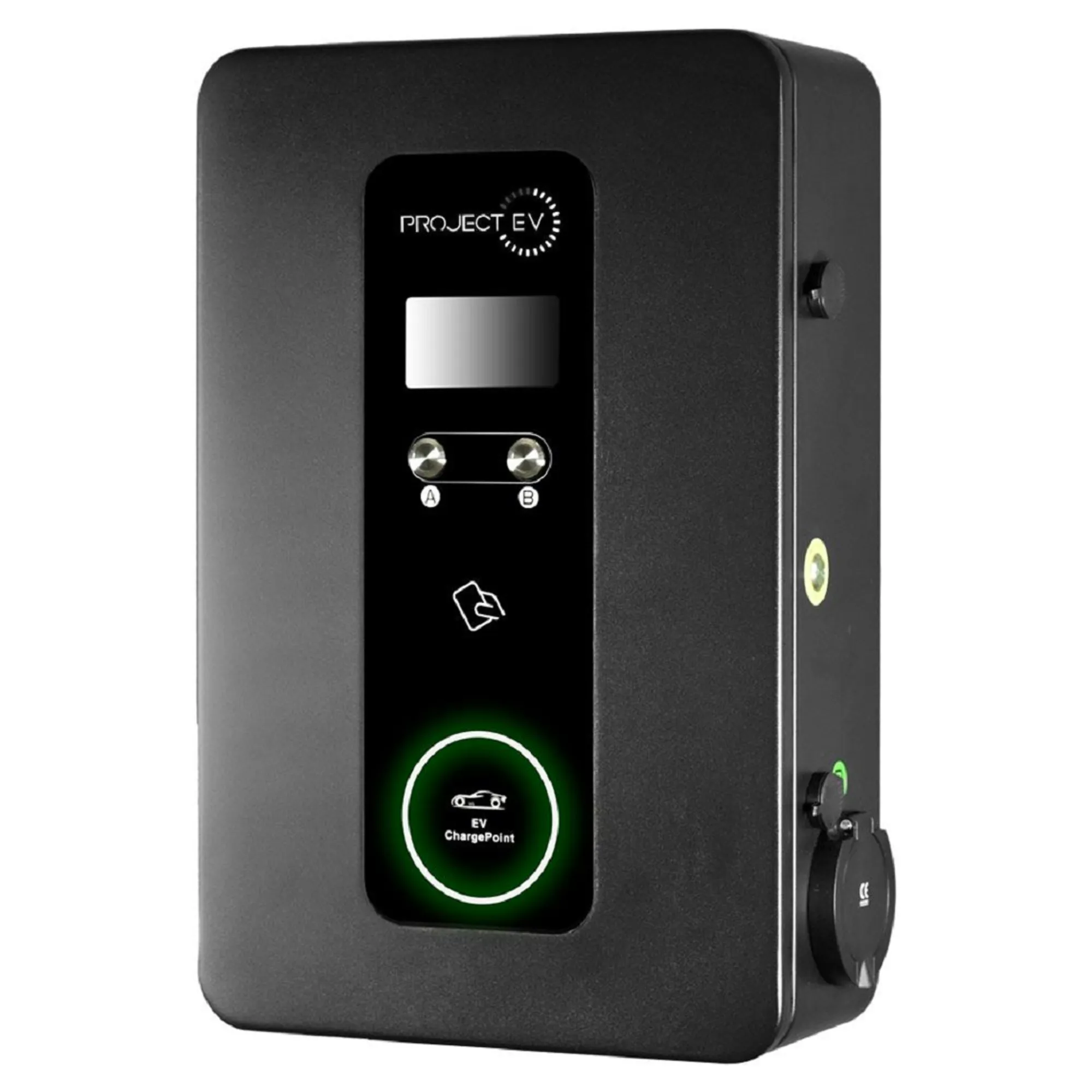

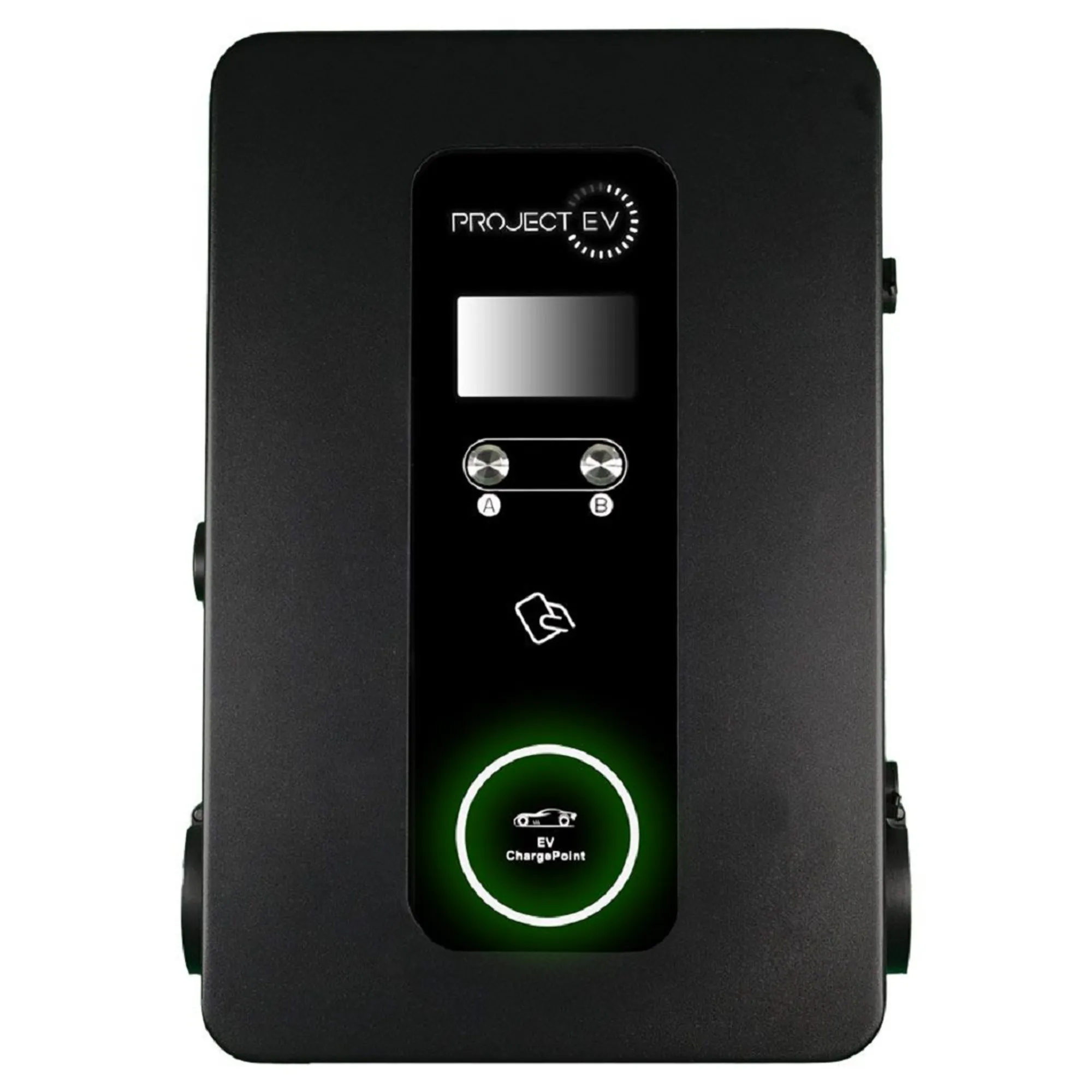

The EVA-SE-W EV Charger from Project EV is an untethered dual socket single phase AC electric vehicle charger with RFID card compatibility available in either dual 7kW Single Phase or dual 22kW 3-phase options.

This Pro Earth EV Charger comes packed with a range of features and boasts a market leading five year warranty. With a compact sleek design this charger also provides the user with the capability to take advantage of off-peak energy tariffs, potentially saving £100's per year. A cable lock system is included for added security as well as a free mobile moitoring App and a dynamic load balancing system.

EVA-SE-W is an intelligent EV charger benefitting from smart power adjustments, emergency stop and WiFi/app/ethernet monitoring. With the addition of the Project EV 4G kit and SIM card the charger can connect to the internet via 4G - ideal if there is no access to WiFi or an ethernet port and also fully compatible with Project EV's Pro App. Differing from Project EV's individual user app, the Pro app has been designed specifically for business owners. Offering a suite of advanced features that empower you to maximize the potential of your charging infrastructure, the Pro app benefits from a user-friendly interface and comprehensive tools for efficient management and control of multiple chargers, ensuring smooth operation and enhanced revenue generation. From monitoring charging activity to assigning RFID charging tags and streamlining expenses, the Pro App is the ultimate solution for business owners looking to optimize their EV charging operations.

IP65 rated, the unit is suitable for use in outdoor, unsheltered environments.

These units do not require the additional installation of an earthing spike. This built in earthing means no costly groundwork, holes in driveways or any other additional mess and cost associated with earth spike installation.

Key Features of the Project EV EVA-SE-W Untethered Dual Socket EV Charger Include:

RFID Card Compatibility
2 x Untethered Type 2 Sockets
Compact, Sleek Design
LCD Display Screen
LED Indicator Light
Built in Earthing - Does not Require Installation of Earthing Spike
Time Shift Technology - Take Advantage of Off-Peak Energy Tariffs
Cable Lock System
Dynamic Load Balancing
Complex Electrical Protection
WiFi/App/Ethernet Monitoring
Emergency Stop Button
IP65 Rated
OCPP v1.6 Open Charge Point Protocol
Max. Power Output: 7.3kW Per Socket single phase / 22kW 3-phase
Max. Ouput Current: 32A Per Socket
Voltage: 230V or 415V depending on model chosen
Untethered - Type 2, IEC 62196-2 Socket
On-board 6mA DC Leakage Protection
Colour: Grey and black
OZEV Approved
Height562mm
Width:320mm
Depth:175mm
Warranty: 5 Year
